4.4kWp Residential Solar Structure with Walkway

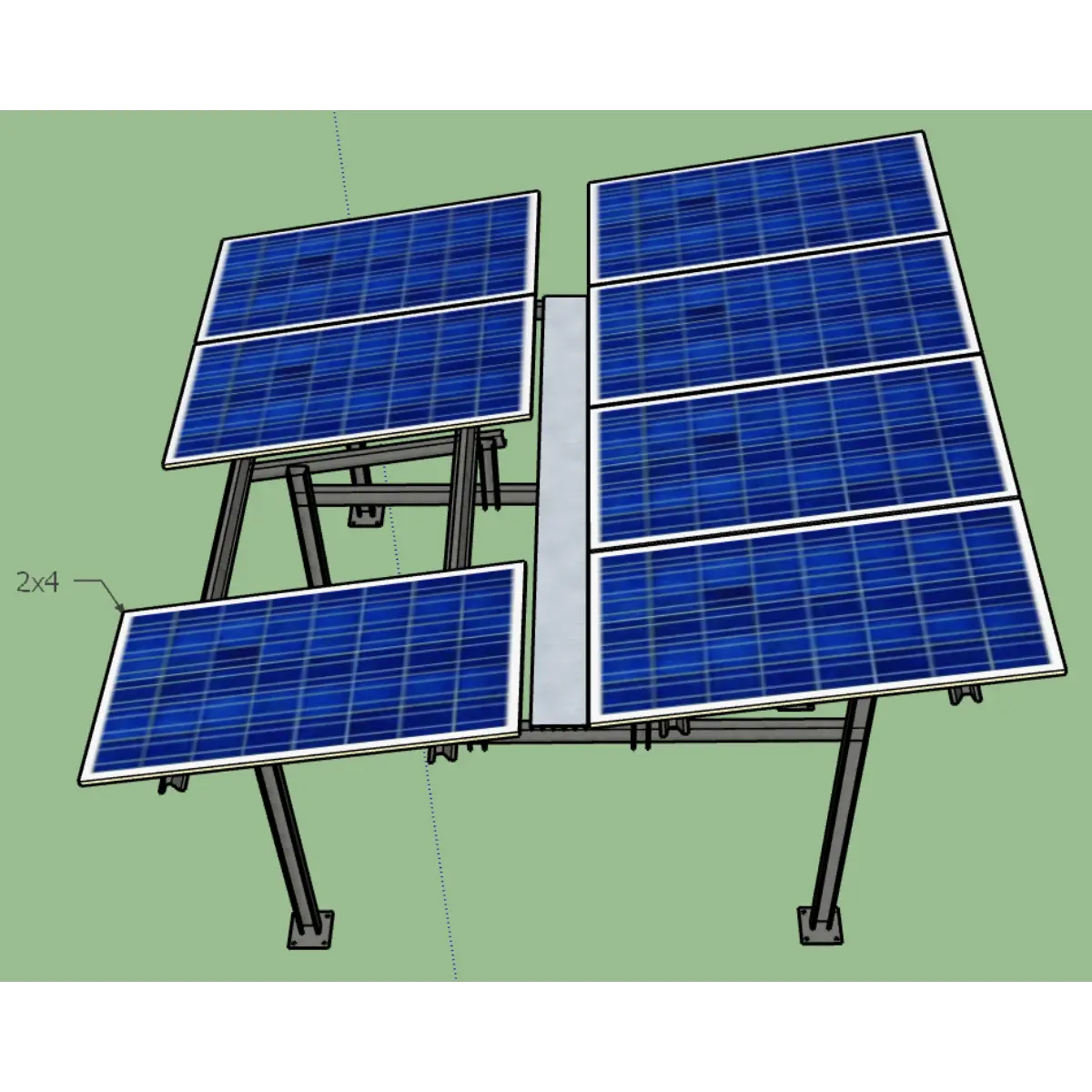

The 4.4kWp residential solar structure with walkway is designed to maximize rooftop solar output while ensuring safe and convenient access for maintenance. Its elevated design supports high-efficiency modules and allows better airflow, helping panels run cooler and more efficiently in Indian conditions.
This structure is engineered for strength, correct tilt angles, and wind resistance, making it suitable for exposed terraces in urban and semi-urban locations. The integrated walkway lets technicians and homeowners move around the array without stepping on panels, reducing the risk of damage and simplifying cleaning.
Ideal for typical 3BHK rooftops, this 4.4kWp structure works seamlessly with grid-tied or hybrid systems to support meaningful savings on electricity bills. When combined with quality inverters and optional battery storage, it becomes the backbone of a long-lasting, low-maintenance solar solution available from Sugatu.in.
The design of solar panel supporting structure is done and the effects of wind force on its structure stability are analyzed using design Code IS 875 Part 1 , IS 801 , Degree 15 wind speed 150Kmh.
Column Used are HDGI with 80 Micron with base plate welded
Column will be secured with 400x400mm civil Block
Column base Plate will be anchor fastened using Hilti or Equivalent Fastners
Rafter Purling and Bracing will be Fastened Using Ss304 Bolt Nut with PW and Sw
JSW Galvalume Az 150 Raw material used for Rafter purlin and Bracing Section
| Document Name | Download |
|---|---|

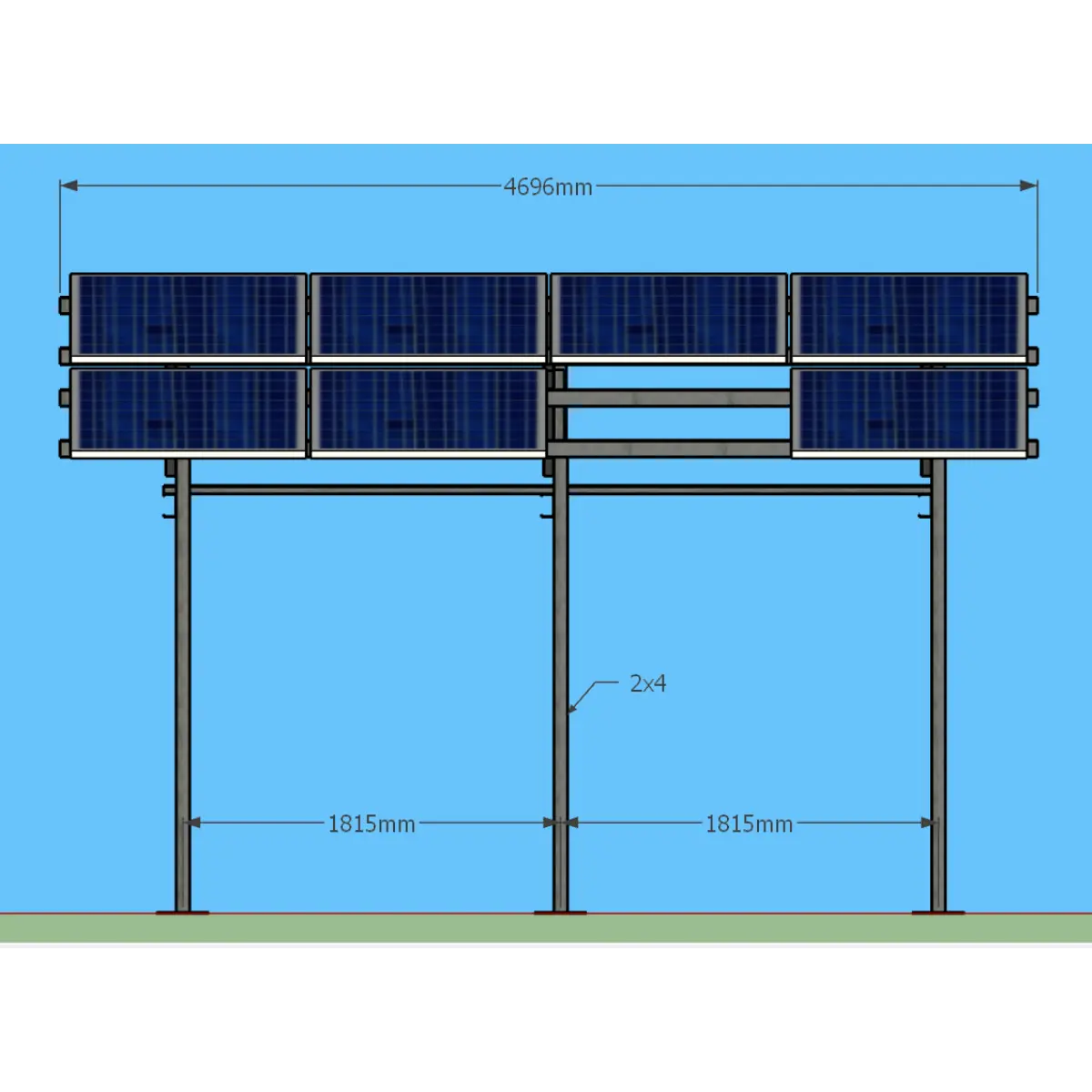

| GA DRAWING RSW 4.6 KWp | Download |
